Specifications:
System
Frequency range: 518 – 548 MHz
Transmission range: up to 120 m (line of sight)
Number of the simultaneously active channels: 18 per frequency band
Audio frequency response: 45 – 15 kHz
Audio dynamic range: 106 dB (A-weighted)
Features:
Up to 40 MHz Switching Bandwidth – Due to the enormous bandwidth of up to 40 MHz and a wide range of frequency bands, the wireless system is usable everywhere on the world.
Suitable for larger installations – Four available band variants enable the use of up to 72 channels simultaneously.

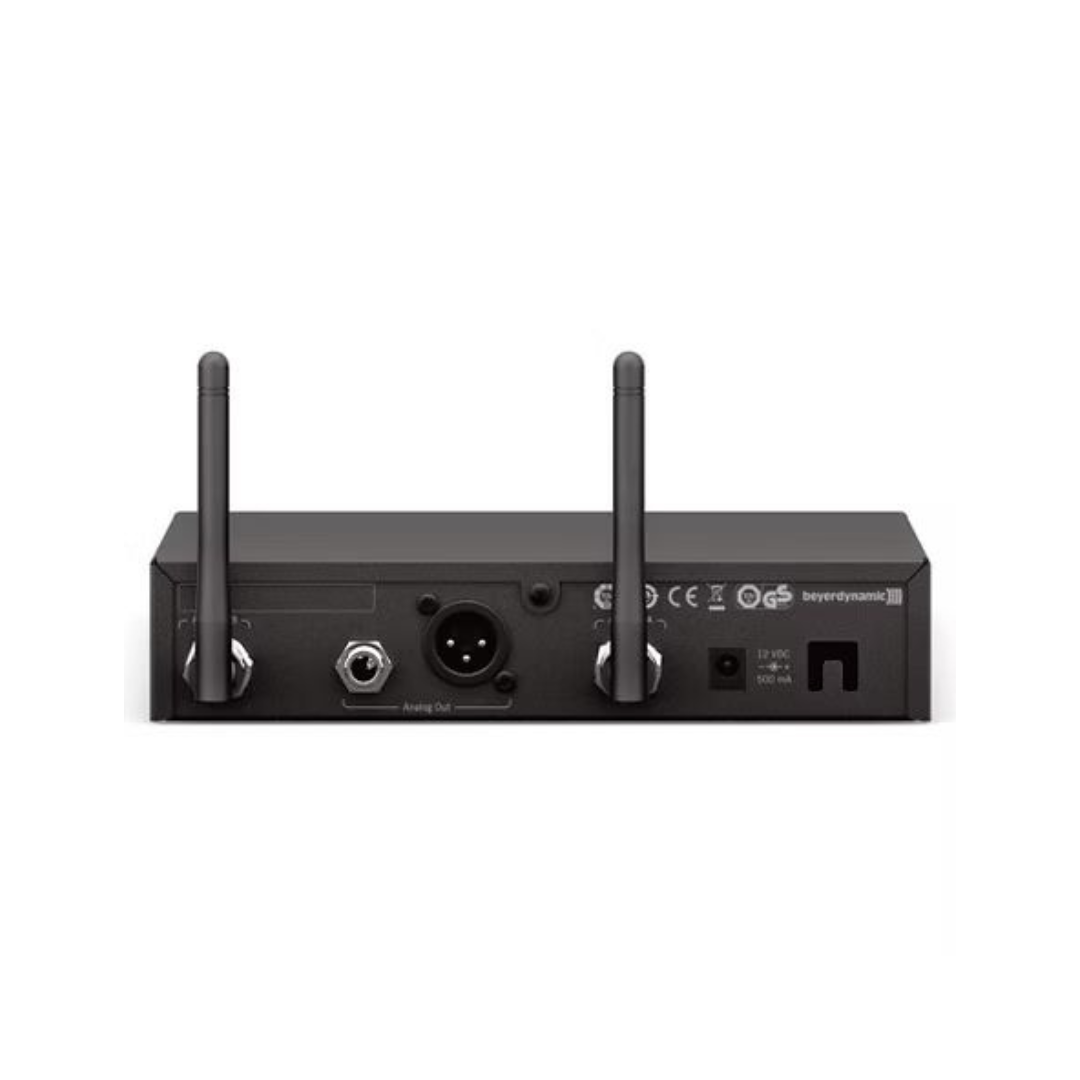

Robust Housing – The robust metal housing of the receiver protects against damage during use.
Great Design – Particularly pleasant to use is the high-quality haptics of the transmitters and the receiver. Likewise, the system shines in a simple, appealing design.
Intuitive Operating Elements – Intuitive operating elements provide a user-friendly menu navigation.
Antenna Diversity – Even in a complex environment, the antenna diversity ensures best signal reception and avoids unpredictable interruptions.
Pilot Tone Function – The pilot tone prevents noise and assures user-friendly handling. The TG 500 wireless system uses the pilot tone to identify a correct signal for improved interference-free transmission and to transmit a low battery warning as well as the audio mute information to the receiver.
Infrared Synchronization – The settings of the transmitter can easily be done at the receiver and are quickly transferred by infrared synchronization to the transmitter.
120 m Range – With a range of up to 120 meters, TG 500 offers much more freedom than similar systems.
10 h Battery Operation – With a battery operation of 10 hours there is no need for concern regarding extensive encores or longer events.
No battery change required – The handheld and beltpack transmitters can be operated with standard NiMH batteries and charged with the optionally available charger (WA-CD).
