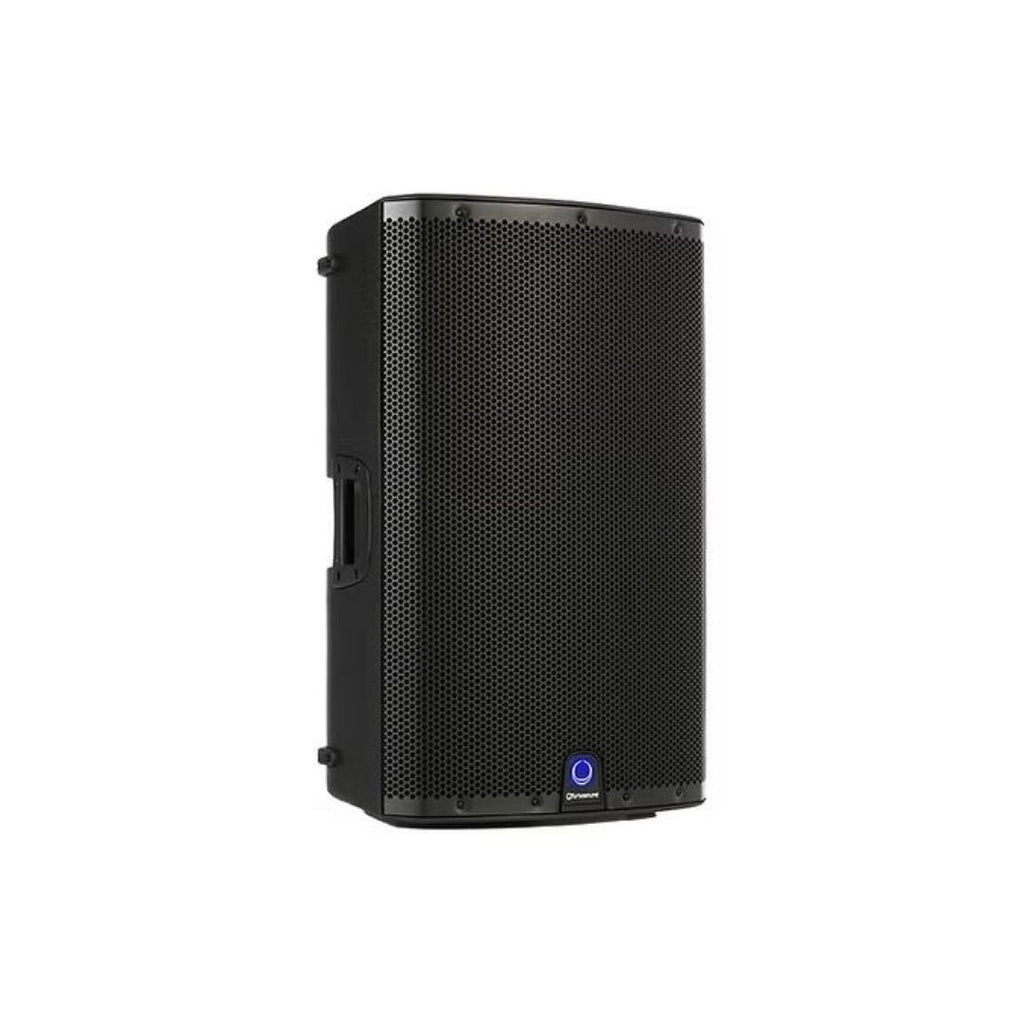

2500 Watt 2 Way 15" Powered Loudspeaker with KLARK TEKNIK DSP Technology, Speaker Modelling and ULTRANET Networking
Frequency response
50 Hz ? 18 kHz ?3 Db
42 Hz ? 20 kHz -10 dB
Nominal dispersion
75? H x 55? V @ -6 dB points
Maximum SPL
132 dB peak
Crossover type
Active
Transducers
1 x 15" (387 mm) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter
Independent HF, LF, peak and rms
Amplifier
Maximum output power*
2,500 W
Type
Class-D
Protection
Short circuit, open circuit, thermal

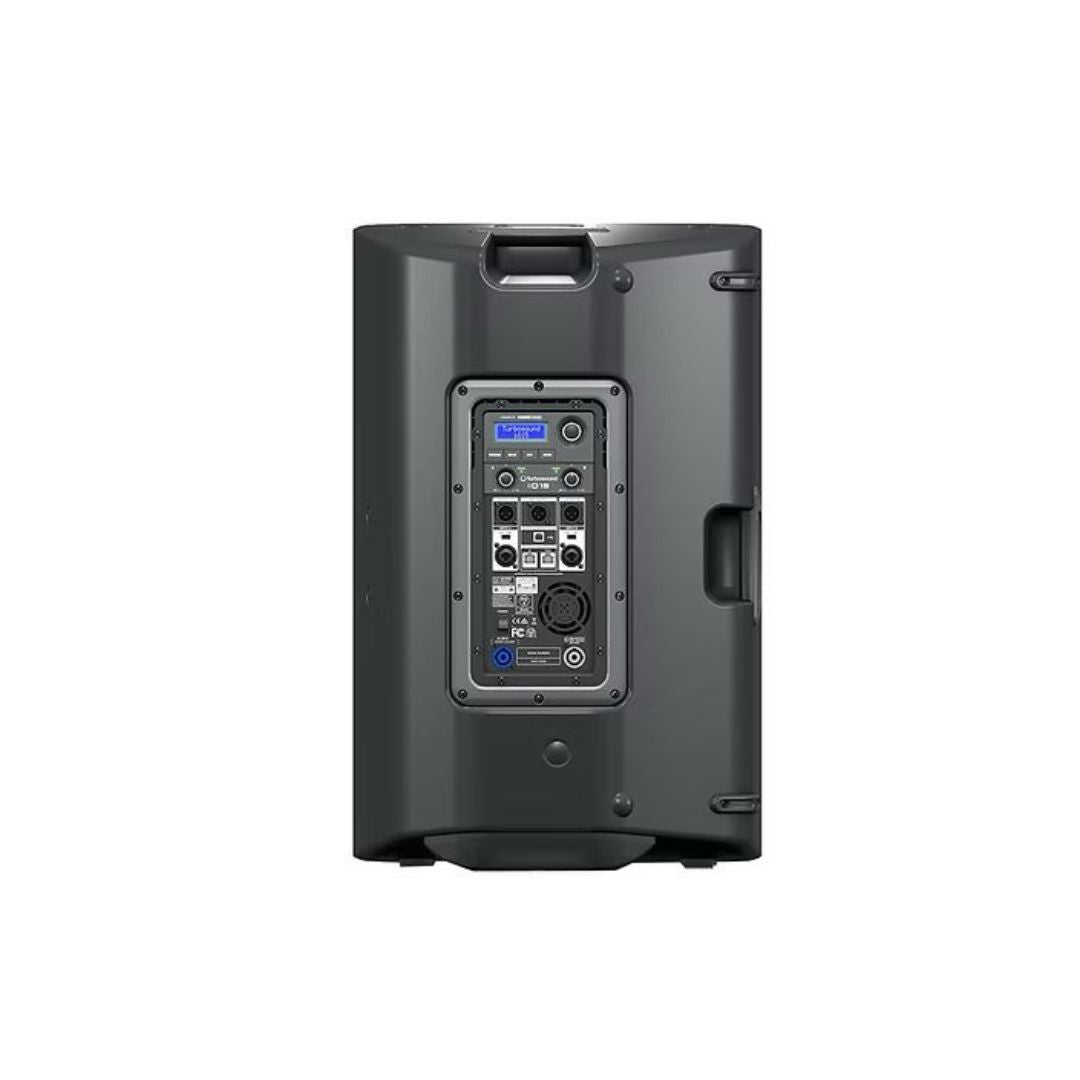

Connectors
Input A / B
2 x combo jack/XLR
Sensitivity
Line +4 dBu, mic -22 dBu, switchable
Input impedance
20 kO unbalanced, 40 kO balanced
Maximum input level
+21 dBu
Output A / B
2 x XLR Linked to input
Mix output
XLR, balanced
Output impedance
100 O unbalanced, 200 O balanced
Ultranet input/link
2 x RJ45
Mains Supply
Neutrik powerCON input 20A and link 15A
Controls
DSP
2 x gain controls (channels A and B)
2 x Line/Mic switch
Mixer section
2 x gain controls (channels A and B)
2 x Line/Mic switch
User DSP Functions
Factory EQ presets
Positioning, Sound mode, Sound modeling, FBQ
Display
LCD 128 x 32, blue backlit
Delay
0 - 300 ms
Equalisation
High and low shelving EQ
2 x parametric EQ
Limiter
Zero attack input limiter
Presets
20 total presets, 19 user-definable
Crossover
High Pass L-R 24 dB/oct
Protection
Lock-out function for all settings
